Compact Convector Radiator White Type 11 tendance 21 22 400mm 600mm Central Heating Karte
Compact Convector Radiator White Type 11 tendance 21 22 400mm 600mm Central Heating Karte, Compact Convector Radiator White Type 11 21 22 400mm 600mm Central Heating Karte achat
SKU: 962397
Convector Radiator White Type 11 21 22 400mm 600mm This is the title
Welcome to Cheeky Bathrooms: Your Source for Quality Radiators at Unbeatable Prices!
At Cheeky Bathrooms, we believe that everyone deserves access to high-quality heating solutions without breaking the bank. Thats why were proud to offer a diverse range of radiators that combine exceptional value with uncompromising quality.
Multi-Buy Savings: Looking to upgrade multiple rooms or install heating solutions throughout your home? Take advantage of our exclusive multi-buy option! When you purchase more than one radiator from our selection, youll unlock additional savings, allowing you to maximize your budget without sacrificing quality.
Connection
Each Kompact radiator has 4 x 3/4” connectionsas standard. 3/4” valve adaptors are available, whichprovides a 3/4” inch connector option to the valvewithout reducing performance.
Applications
Kompact Radiators are suitable for two pipe installations.For single pipe applications, it is advisable to use diversiontees in the pipework, as this will assist in obtaining designperformance from the radiators.Brackets are of a strong design, with open top and deepslots, which facilitates easy and secure installation. Plasticinserts seat the radiator precisely on the bracket minimizingexpansion and contraction noise.The neat nickel-plated plug and vent provide awatertight joint, whilst complementing the superior finish

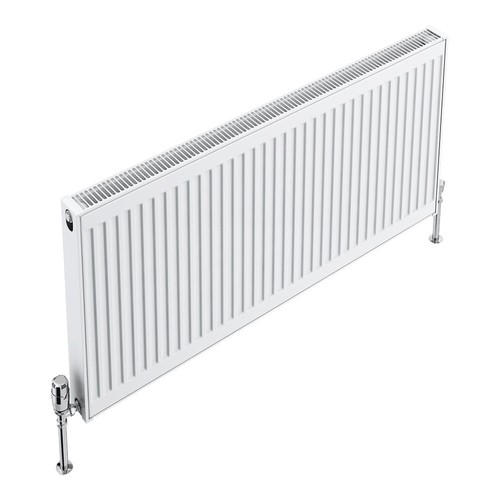

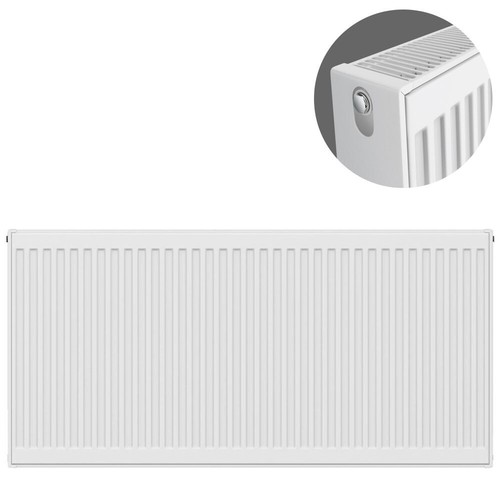

Slimline Radiator (Type 11)
Description: Our slimline radiator, also known as Type 11, features a sleek design with a single panel and one set of fins. This configuration makes it the thinnest option, perfect for rooms where space is at a premium. While it offers a lower heat output compared to other types, its ideal for areas like cloakrooms, ensuites, or as a secondary heating source in larger rooms.
Model: S611K
Features:
- Single panel convector radiator
- Dimensions: (H) 600mm, (W) 1100mm, (D) 50mm
- Horizontal
- Complete with fixing kit
- Factory fitted top grilles & side panels
- Suitable for 2 pipe installations
- Strong brackets with plastic inserts to minimise expansion and contraction noise
- 4 x 3/4” connections
- Water Content: 3.19 litres per minute
- BTUs: 3565
- Watts: 1045
- Pressure tested to 13 Bar
- Steel
- White
Model: S613K
Features:
- Single panel convector radiator
- Dimensions: (H) 600mm, (W) 1300mm, (D) 50mm
- Horizontal
- Complete with fixing kit
- Factory fitted top grilles & side panels
- Suitable for 2 pipe installations
- Strong brackets with plastic inserts to minimise expansion and contraction noise
- 4 x 3/4” connections
- Water Content: 3.77 litres per minute
- BTUs: 4213
- Watts: 1235
- Pressure tested to 13 Bar
- Steel
- White

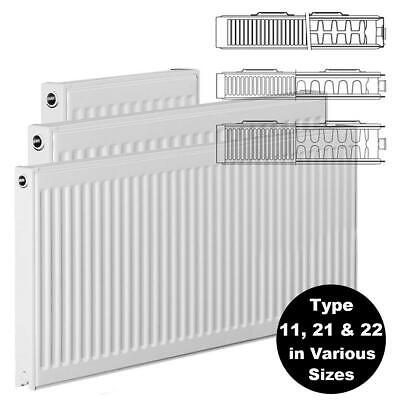

Compact Radiator (Type 21)
Description: The compact radiator, or Type 21, boasts a single set of fins sandwiched between front and back panels. This design provides a higher heat output while maintaining a relatively slim profile. Its a great choice for bedrooms where efficient heating is essential, but space constraints need to be considered.
High-Output Radiator (Type 22)
Description: Our high-output radiator, known as Type 22, features two sets of fins and front and back panels for maximum heat distribution. This robust design delivers the highest heat output among the three types, making it suitable for larger rooms that require efficient heating. While it may be bulkier, it seamlessly blends into spacious environments.
Radiator Type: Double Convector Type 22
- Size: H600 x W2200mm
- Connections: Each radiator has 4 x 1/2" connections as standard..
- Heat Output:
- Delta T50:
- Output Watt: 4036
- Output BTUs: 13772
- Delta T60:
- Output Watt: 5171
- Output BTUs: 17643
- Delta T50:
These descriptions provide insight into the unique features and advantages of each radiator type, helping you choose the perfect option for your heating needs and space requirements
Further Radiator and Central Heating Information
When designing for domestic systems we recommend that the Kompact be used only in heating systems complying with British Standard Code of Practice for Central Heating for Domestic Premises BS 5449 Part 1.
On completion of the installation the system should be properly flushed and filled in accordance with the British Standard Code of Practice for the Treatment of Water in Domestic Hot Water Central Heating Systems BS 7593. This will remove flux residues and installation debris, which might promote corrosion and damage within the system. If it is decided to apply a corrosion inhibitor to maximize the working life of the system, it should be applied in accordance with the manufacturers instructions and should be suitable for the particular metals within the system.
